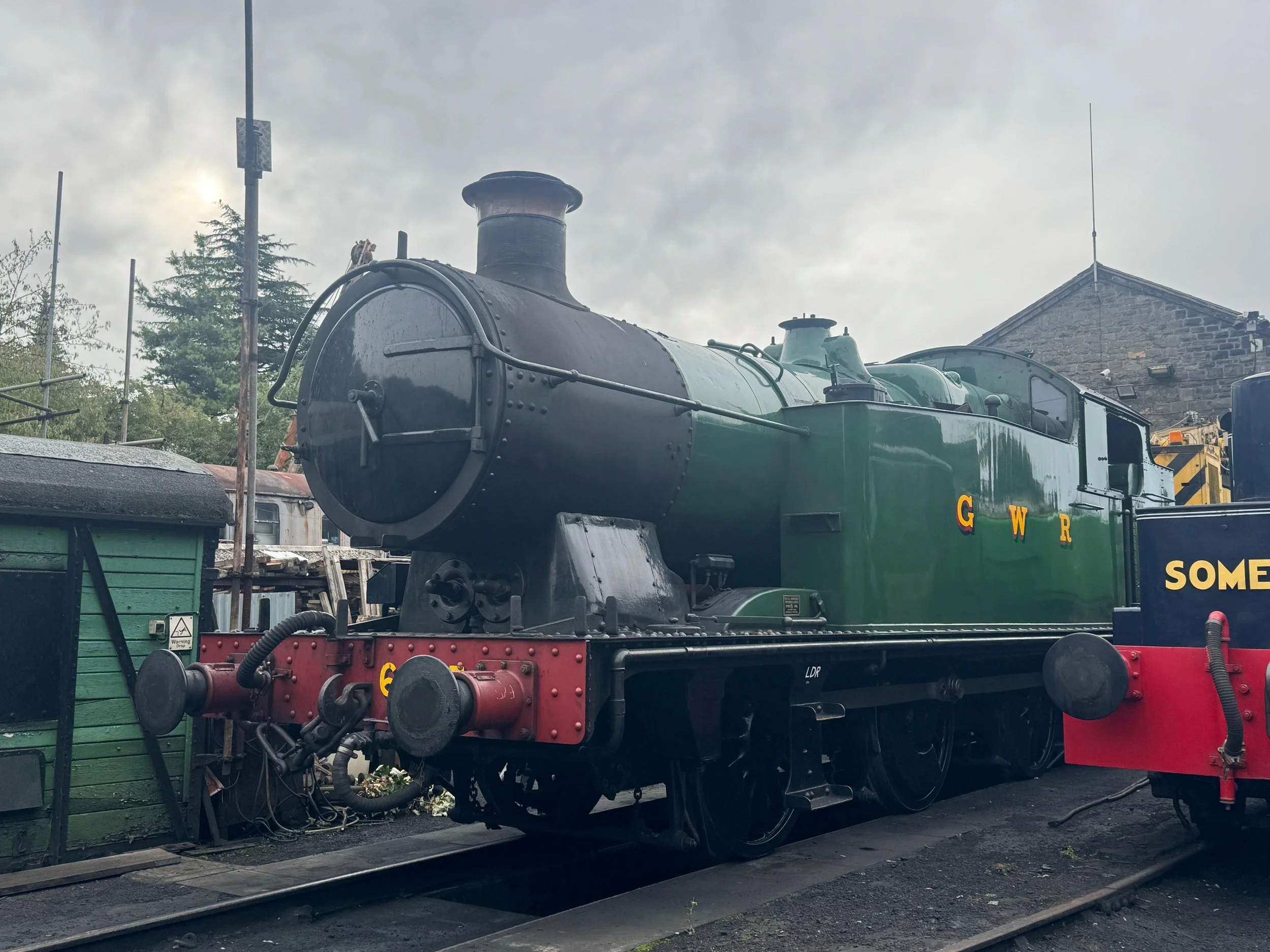

GWR 5600 no.6695

Great Western Railway 5600 class 0-6-2T no.6695

Wheel Arrangement: 0-6-2T
Loco Weight: 69 tons 7cwt
Cylinder Size: 18” diameter by 26” stroke
Wheel diameter: 4ft 7.5in (driving), 3ft 8in (trailing)
Boiler Working Pressure: 200 psi
Water Capacity: 1900 gallons
Fuel Capacity: 3.75 tons

Vehicle Name / Number: 6695
Other Number(s): works no.983
Builder: Armstrong Whitworth
Year Built: 1928
Owner: 6695 Locomotive Group

6695 was built in 1928 by Armstrong Whitworth in Newcastle to a design by Charles Collett. It is one of two-hundred 5600 Class locomotives built for the Great Western Railway between 1924-1928, of which nine locos were preserved (including 6695). The 5600 Class was based on the Rhymney Railway M and R class locomotives.
6695 was originally based at Tyseley shed in Birmingham and was deployed on suburban passenger trains between Birmingham Snow Hill, Stratford-upon-Avon and Leamington Spa.
In November 1961, 6695 operated the last scheduled passenger train from Neath to Treherbert. It was withdrawn from service in 1964 whilst based at Radyr (Cardiff), and was sold to Barry Scrapyard. The loco left Barry in the late 1970's and was restored to working order over the next 25-30 years. It was based at the Swanage Railway until 2015 when it bowed out of service pending overhaul. The overhaul was completed in 2022 and the loco has seen spells at the West Somerset Railway and the Swindon & Cricklade Railway before arriving at the Avon Valley Railway in September 2025.
The loco is undergoing initial engineering inspections, with steamings to follow - tune into our Facebook or Instagram (@avrbitton) for updates!
